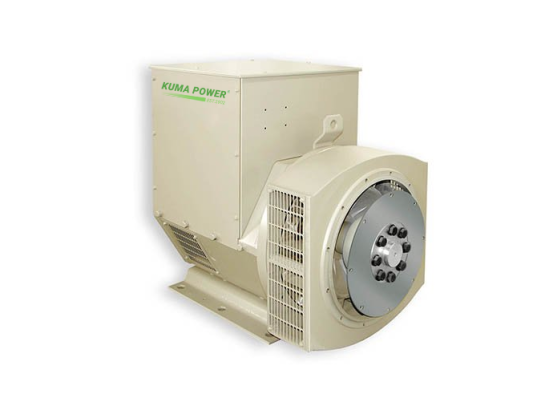

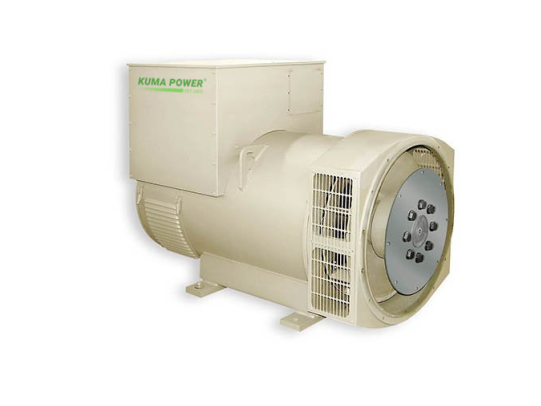

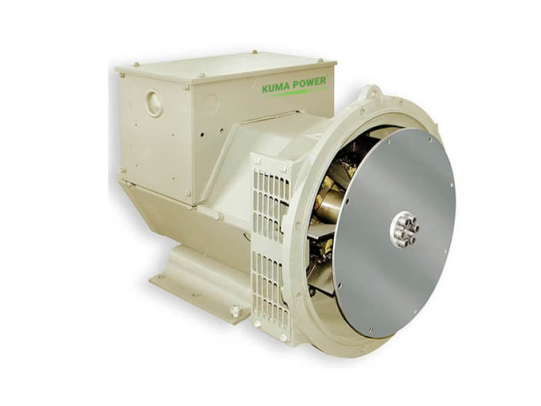

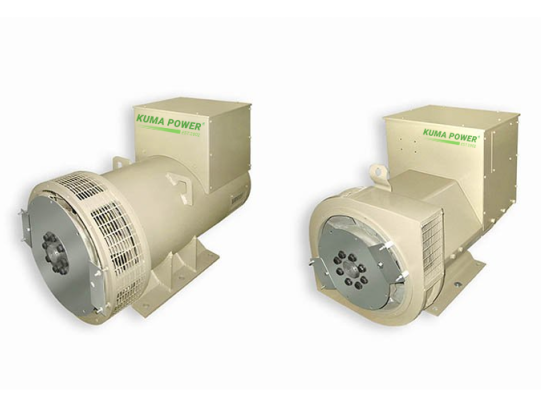

KUMA ALTERNATOR

Kuma alternator has been focusing on developing, designing all series of generating alternators, high-voltage alternators and marine alternator. Recent years, Kuma has asorbed advanced technology and developed 6.0kW-2000kW - KM series of brushless AC synchronous alternator, and had a large production capacity.

Characteristic

• Optional auxiliary winding system provides sustained short circuit.
• Advance AVR control for trouble - tree operation under the most demanding conditions.
• Easy paralleling with power grid and other alternator. Standard 2/3 pitch windings avoid excessive neutral currents.
• Dynamically balanced rotors, with sealed -for-life ball bearings, single or double -bearing structure.
• Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
• Built to conform with all leading industrial standards.

Standards: BS5000, VDE0530, UTE5100, NEMA MG 1-32, CEMA, IEC34-1, CSA22.2-100, AS1359, BS6861

Excitation systems: SX460/SX440/MX321/AS440

Insulation class: Standard "H"

Telephone Interference: THF is less than 2%. TIF is less than 50

Enclosure: Standard "IP23"
